Reheating

Kromschroeder ECOMAX Self-recuperative burners

For flue gas return through the burner

Primary Image for ECOMAX Self-recuperative burners

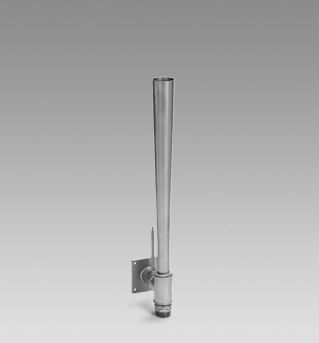

For flue gas return through the burner For Ecomax 2 Axis spacing K = 285 mm Installation height M = 540 mm Burner installation in the horizontal position, eductor perpendicular to burner axis Construction stage A Standard dimensions
manual
Name
Description
File Size
Date
Size
Technical information for self-recuperative burner ECOMAX® in English
4.23 MB
6/18/2020
PDF 4.23 MB
Others
Name
Description
File Size
Date
Size
Operating instructions for self-recuperative burner ECOMAX® in English
2.25 MB
6/18/2020
PDF 2.25 MB
Name
Description
File Size
Date
Size
Operating instructions for self-recuperative burner ECOMAX® in English
2.25 MB
6/18/2020
PDF 2.25 MB
Technical information for self-recuperative burner ECOMAX® in English
4.23 MB
6/18/2020
PDF 4.23 MB
SKU
Description
alt
21802371
For heating of furnace systems Burner size 1, rated capacity: 36 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 545 mm With staged combustion For natural gas For direct heating with eductor Burner head identifier 31 Constru
alt
21802354
For heating of furnace systems Burner size 2, rated capacity: 60 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 545 mm With staged combustion For natural gas For direct heating with eductor Burner head identifier 31 Constru
alt
21802326
For heating of furnace systems Burner size 3, rated capacity: 100 kW With cast steel ribbed tube recuperator Recuperator length: 545 mm With staged combustion For natural gas For radiant tube heating without eductor Burner head identifier 34 Construc
alt
21802396
For heating of furnace systems Burner size 0, rated capacity: 25 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 556 mm With staged combustion For natural gas For radiant tube heating without eductor Burner head identifier 3
alt
21802287
For heating of furnace systems Burner size 3, rated capacity: 100 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 545 mm With staged combustion For natural gas For direct heating with eductor Burner head identifier 31 Constr
alt
21802387
For heating of furnace systems Burner size 5, rated capacity: 250 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 545 mm With staged combustion For natural gas For direct heating with eductor Burner head identifier 31 Constr
alt
21802358
For heating of furnace systems Burner size 2, rated capacity: 60 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 545 mm With staged combustion For natural gas For radiant tube heating without eductor Burner head identifier 3
alt
21802397
For heating of furnace systems Burner size 1, rated capacity: 36 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 545 mm With staged combustion For natural gas For radiant tube heating without eductor Burner head identifier 3
alt
21802363
For heating of furnace systems Burner size 2, rated capacity: 60 kW With cast steel ribbed tube recuperator Recuperator length: 695 mm With staged combustion For natural gas For radiant tube heating without eductor Burner head identifier 33 Construct
alt
21802322
For heating of furnace systems Burner size 4, rated capacity: 180 kW With ceramic burled tube recuperator made of SiSiC Recuperator length: 545 mm With staged combustion For natural gas For direct heating with eductor Burner head identifier 31 Constr
